With the future moving towards Automatic Train Control, Gioconda are increasingly outputting Track Centreline data as a by product from our other services.

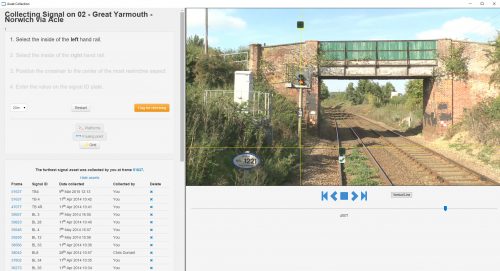

Using GPS, correlated to Drivers video footage, we can supply

  • Raw Track Centreline 10hz readings
  • Processed Track Centreline at up to 0.1m spacings
  • Processed to remove ambiguous points
  • Smoothed vertical alignment
  • Densified point spacings
  • Grade and Curvature measurements
  • Linear datum references

Delivered as CSV, eXcel, CAD layout and Google overlay.
